Slide Gate Valve Design

Ensign Manufacturing required a dedicated fabricated slide gate valve engineered specifically for integration into a dry materials dosing system. Standard commercial slide valves often introduce bulk, weight and mounting constraints that fail to fit neatly between upstream storage hoppers and downstream feeding equipment.

Cadrill was engaged to design a custom valve assembly from the ground up, focusing on a robust fabricated construction using sheet-metal components, welded structural stiffeners, integrated gate guides and practical sealing arrangements.

Slide gate valves deployed in dosing and bulk-handling processes must maintain smooth blade actuation while preventing dust egress and material jamming in the guide tracks. In a fabricated design, managing weld distortion and maintaining blade flatness are paramount to achieving reliable perimeter sealing without causing high friction during actuation.

The design required clear blade-support rails, accessible seal retaining bars and a rigid mounting framework capable of bolting directly between adjacent system ductwork flanges.

Using Autodesk Inventor, Cadrill developed the complete mechanical assembly:

Fabricated Body & Weldments: The outer valve housing was engineered using laser-cut and folded sheet-metal plates. Continuous and intermittent weldments were positioned strategically to provide structural stiffness while minimising heat distortion across the blade sliding plane.

Gate Blade & Sealing Arrangement: The sliding gate blade was modelled with precise side clearances and bevelled leading edges to cleanly cut through bulk material flow during closure. Seal retainers were designed to be readily accessible for maintenance without requiring complete dismantling of the valve body.

Drive & Actuator Mounting: Mounting brackets and guide rails were integrated directly into the structural frame, ensuring consistent alignment between the actuating mechanism and the sliding gate.

Cadrill delivered a complete, manufacture-ready drawing package tailored for steel fabricators:

• Accurate sheet-metal flat-pattern DXFs ready for laser cutting and CNC press-brake forming.
• Weldment fabrication drawings with weld symbols, structural callouts and dimensional inspection tolerances.
• Individual part drawings for the machined slide blade, seal clamp plates and actuator linkage brackets.
• Complete general arrangement (GA) drawings and bill of materials for workshop assembly and quality sign-off.

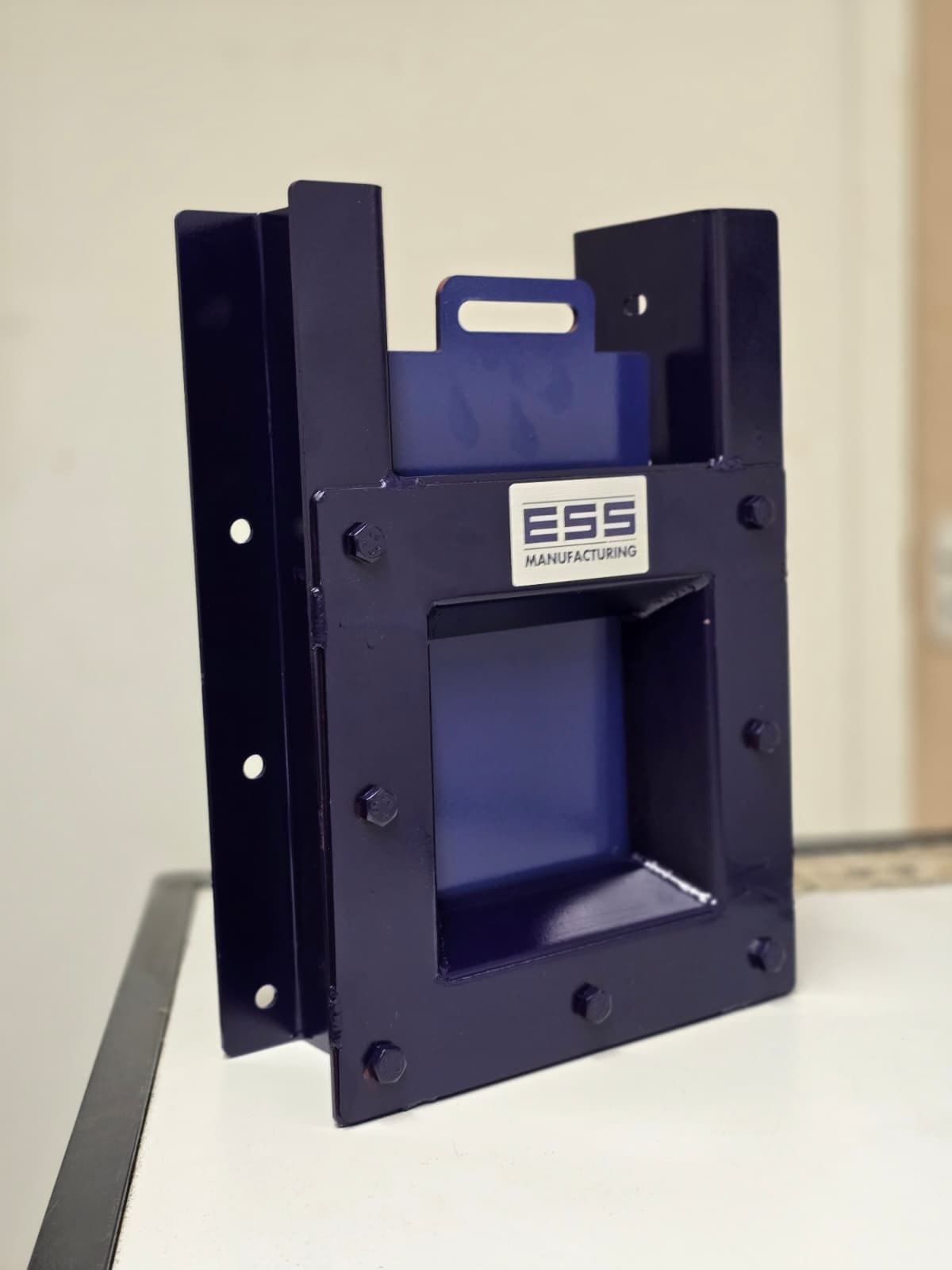

The detailed engineering drawings and 3D CAD models enabled Ensign Manufacturing to fabricate the slide gate valve efficiently and accurately. By designing the valve around actual manufacturing processes and real-world installation clearances, the client achieved a dependable dosing valve that integrated smoothly into their production line.
